Front Sights
The new ahg-front sight STRONG has the following characteristics: Milled from full material, therefore especially strong. Special lateral clearing for easy handling of the steel aperture, at the same time the size of the aperture is visible (front sight for M 22 has no lateral clearing). New sturdy clamping device, especially suitable for 300 m, long range and crossbow. Suitable for models 1407 - 1813 (replacement for ANSCHÜTZ front sight Art. 6523). tread at both ends
This completely new design allows the tunnel to be rotated around its own axis without tools.- The torque, i.e., the resistance to rotation, can be variably adjusted using an easy-to-grip adjustment ring.- The anti-tilt pins built into the front sight tunnel can be easily removed.- The scale on the front sight tunnel allows for exact repetition of the setting of different tilt angles in the various types of stops.- Very pleasant sight picture thanks to absolute symmetry and narrow bridge between front sight base and tunnel.- The narrow bridge can also be used for tilt control.Black clamping screw is not included in delivery.
Wie ahg-Korntunnel SWING jedoch mit integrierter Visierlinienerhöhung. - Erhöhung 8 mm.
The sight ring is embedded in a groundglass pane, thus completely distortionfree. A strong contrast is created with the combination of glass and mat-black aperture. The use of glass and metal materials avoids variations in temperature, thus this front sight is especially suitable for big bore rifles. Optically perfect mat-black metal aperture set into a securely fixed glass holder. Distortion-free. Reflection-free front sight insert. Optimal contrast. Heat-resistant material. Easy substitution of front sight. Ideally suited for large-bore rifles. Easily adjustable to meet individual requirements. Front sight on picture not incl. in the product

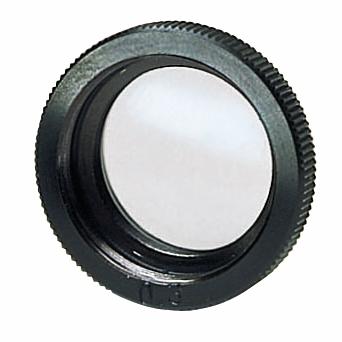

Eagel eye optical lens with x magnification for front sight available in M18 or M 22 with 0,3 - 0,5 or 0,75 diopters0.3 corresponds to a magnification of 1.3 x0.5 corresponds to a magnification of 1.5 x0.75 corresponds to a magnification of 1.75 x
- Two sizes M18 and M22.- Adjustment without tools.- Exact reproduction of various canting angles.
Can be used to control canting without having to turn the head. It is attached to the rail of the action in front of the rear sight. Knurled nut ensures easy and variable adjustment. Easy centering of the front sight because the spirit level is not visible in the target picture.
Complete sight with CENTRA front sight tunnel, universal sight 6805. Incl. perforated front sight clamping screw and transparent perforated front sight. Suitable for all common Anschütz match rifles. Front sight available in M18 or M22
Complete sight set with front sight 6832, Universal micrometer rear sight 7002
Most modern antirefl ection coating technology (UV 420) onthe eagle eye Vision Contrast offers highest contrast boost whilekeeping a constant 99.8 % blooming. The Vision Contrast blocksthe blue share of the light, meaning less stray light by explicitreduction of the blue share of the light.This, in turn, results in highest contrast increase. The Vision Contrasteagle eye works without eyesight 0.00dpt and is therefore allowedfor all sports shooters according to DSB regulations.
EAGLE EYE VISION CONTRASTMost modern antirefl ection coating technology (UV 420) onthe eagle eye Vision Contrast offers highest contrast boost whilekeeping a constant 99.8 % blooming. The Vision Contrast blocksthe blue share of the light, meaning less stray light by explicitreduction of the blue share of the light.This, in turn, results in highest contrast increase. The eagel eye Vision Contrast has a x1,5 magnification and is available in 0,3 , 0,5 and 0,75 Dioptrie
foresight tunnel with slot for metal apertures M18Cantable tunnelFits Anschütz 19xx & 20xx series , all Anschutz air rifles , Bleiker and Grünig & Elmiger guns Threaded both ends for accessories
transparent housing for maximum brightnessinfinetly variale , swivels on the axelinsertable cross pins for tilt controlitem 9518 ( M 18 for Anschütz )item 9519 ( M 22 for Anschütz )
Front sight holder Race The new designed front sight holder Race is an alternative to the traditional system. It has some new aiming characteristics. The new filigree design of the holder in connection with the free floating plastic front sight is very comfortable for the eye.The free floating plastic front sight enables a better incidence of light and has no disturbing front sight tunnel ring, whereby you will get a higher optical sharpness, the target can be recognized faster and the sight picture will be clearer. The holder system has no disturbing front sight tunnel ring, which distracts the eye. The target image is detected fast and centered quickly.With the second free floating plastic ring, called empty ring, you can easily control the centering of your rear sight. The empty ring relieves the eye and makes target acquisition easier. The empty ring is also available, as a separate accessory, with a black contrast ring.Instead of the empty ring you also can use an optical lens or you leave it empty delivery volume : front side holder incl. empty ring plastic front sight not included
foresight tunnel with slot for metal apertures M18Cantable tunnelFits Anschütz 19xx & 20xx series , all Anschutz air rifles , Bleiker and Grünig & Elmiger guns Threaded both ends for accessories 18 mm higher than normal sight 9758
foresight tunnel with slot for metal apertures M18 incl. rear sight raiser block Cantable tunnelFits Anschütz 19xx & 20xx series , all Anschutz air rifles , Bleiker and Grünig & Elmiger guns Threaded both ends for accessories 18 mm higher than normal sight 9758
GLOBE FRONT SIGHT:- For Mod. 1907-2013 and air rifle.- incl. plastic front sight 4,0 mm
plastic aperture clear or yellow with lateral hair and 1,5 mm black ring for front sight holder Top 50 and Race, available from 2,3 - 11,0
- To fix position prior to each shot.- Supplied without globe front sight
